Biotinylated Human NY-ESO-1 TCR&CD3 Complex Nanodisc (TCC-HM101) Summary
Product Description |
Recombinant Biotinylated Human NY-ESO-1 TCR&CD3 Complex Nanodisc is expressed from HEK293. Both the biotin and the His tag are located on the C-terminus of the NY-ESO-1 TCR.It contains NY-ESO-1 specific TCR (1G4c113), CD3ε&CD3γ, CD3ε&CD3δ, and CD3ζ dimers. |
Product Background |
The 1G4c113 TCR is an engineered, affinity-matured variant of the 1G4 T-cell receptor that specifically recognizes the peptide fragment of NY-ESO-1 (SLLMWITQC) presented on the HLA-A*02:01. Cluster of Differentiation 3 (CD3) is a multimeric protein complex and T cell co-receptor that plays an essential role in adaptive immune responses. These CD3 dimers bind non-covalently to the TCR to form the TCR&CD3 complex on the cell surface. |
Product Category |
Recombinant Protein / Antibody discovery / Multiple transmembrane proteins / Nanodisc |
Biotinylated Human NY-ESO-1 TCR&CD3 Complex Nanodisc (TCC-HM101) Specifications/Details
Protein |
NY-ESO-1 TCR&CD3 |
Synonyms |
NY-ESO-1 TCR&CD3 |
Species |
Human |
Biotinylated |
yes |
Amino Acid Range |
NY-ESO-1 specific TCR (1G4c113), CD3ε&CD3γ, CD3ε&CD3δ, and CD3ζ dimers |
Molecular Weight |
The protein has a predicted MW of 194.8 kDa. |
Activity |
Immobilized Biotinylated Human NY-ESO-1 TCR&CD3 Complex Nanodisc, His Tag at 2ug/ml (100ul/well) on the streptavidin precoated plate (5ug/ml). Dose response curve for OKT3, mFc Tag with the EC50 of 18.3ng/ml determined by ELISA. The affinity constant of 0.20 nM as determined in SPR assay (Biacore T200). |
Product Tag |
C-His |
Expression System |
HEK293 |
Endotoxin |
Less than 1 EU per ug by the LAL method. |
Shipping, Reconstitution, & Storage
Form |
Liquid |
Shipping |
Shipped with dry ice. |
Formulation |
Supplied as 0.22 um filtered solution in PBS, 200mM L-arginine (pH 7.4). |
Stability And Storage |
Valid for 6 months from date of receipt when stored at -80°C.； Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles. |
Validation Images
|
|

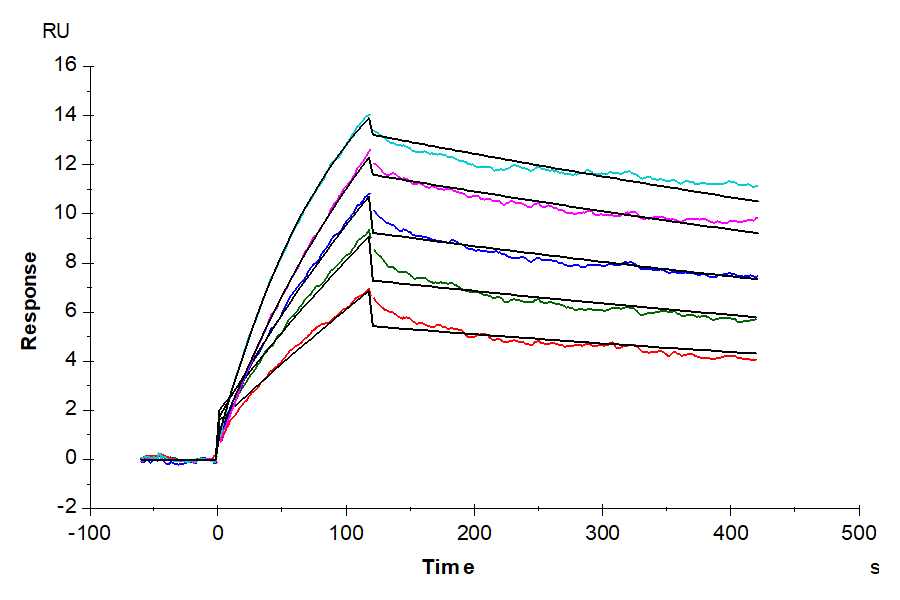

Biotinylated Human NY-ESO-1 TCR&CD3 Complex Nanodisc, His Tag captured on CM5 Chip via Streptavidin can bind OKT3, mFc Tag with an affinity constant of 0.20 nM as determined in SPR assay (Biacore T200). |
|
|

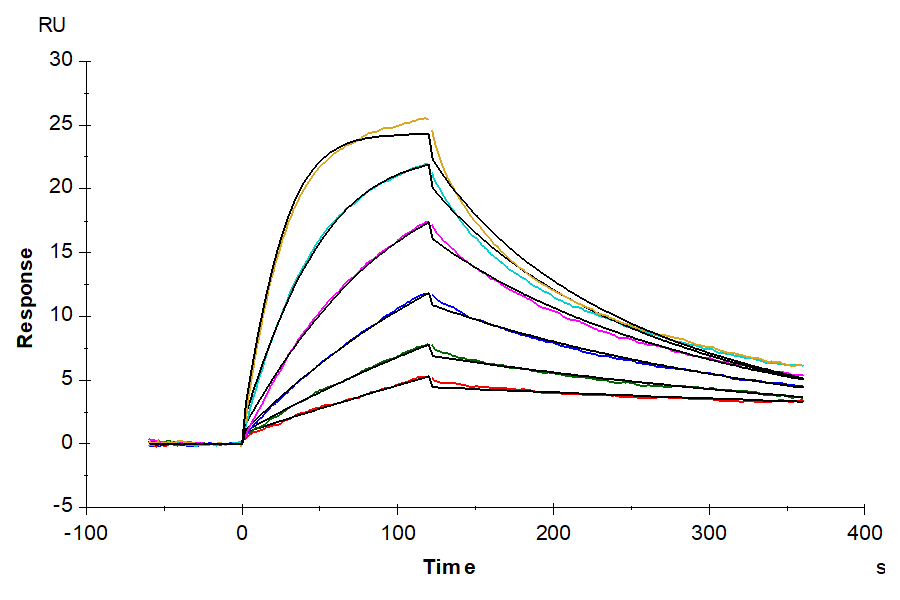

OKT3, mFc Tag captured on CM5 Chip via Protein A can bind Biotinylated Human NY-ESO-1 TCR&CD3 Complex Nanodisc, His Tag with an affinity constant of 0.33 nM as determined in SPR assay (Biacore T200). |
|
|

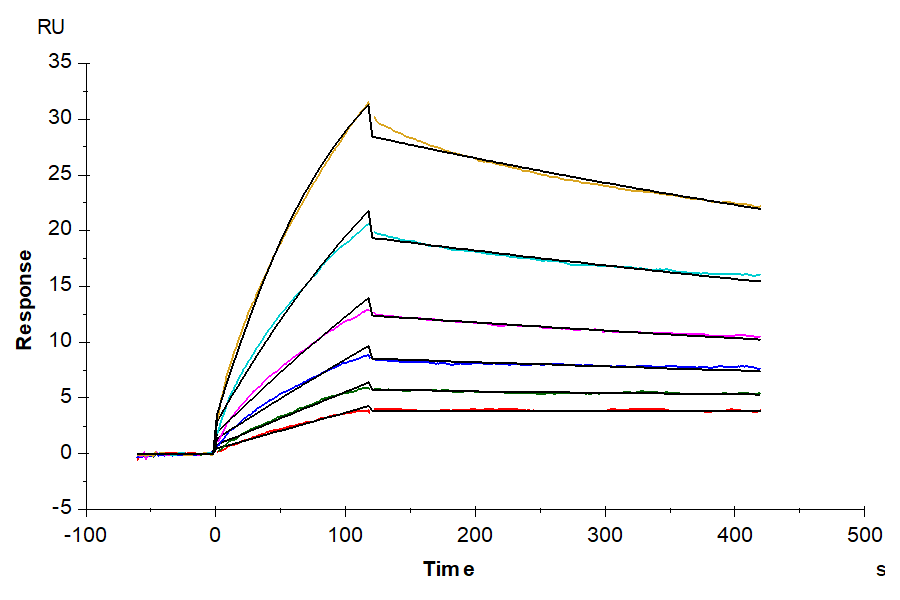

Biotinylated Human NY-ESO-1 TCR&CD3 Complex Nanodisc captured on CM5 Chip via Streptavidin can bind Human HLA-A*02:01&B2M&NY-ESO-1 (SLLMWITQC) Monomer, His Tag with an affinity constant of 0.78 nM as determined in SPR assay (Biacore T200). |
|
|

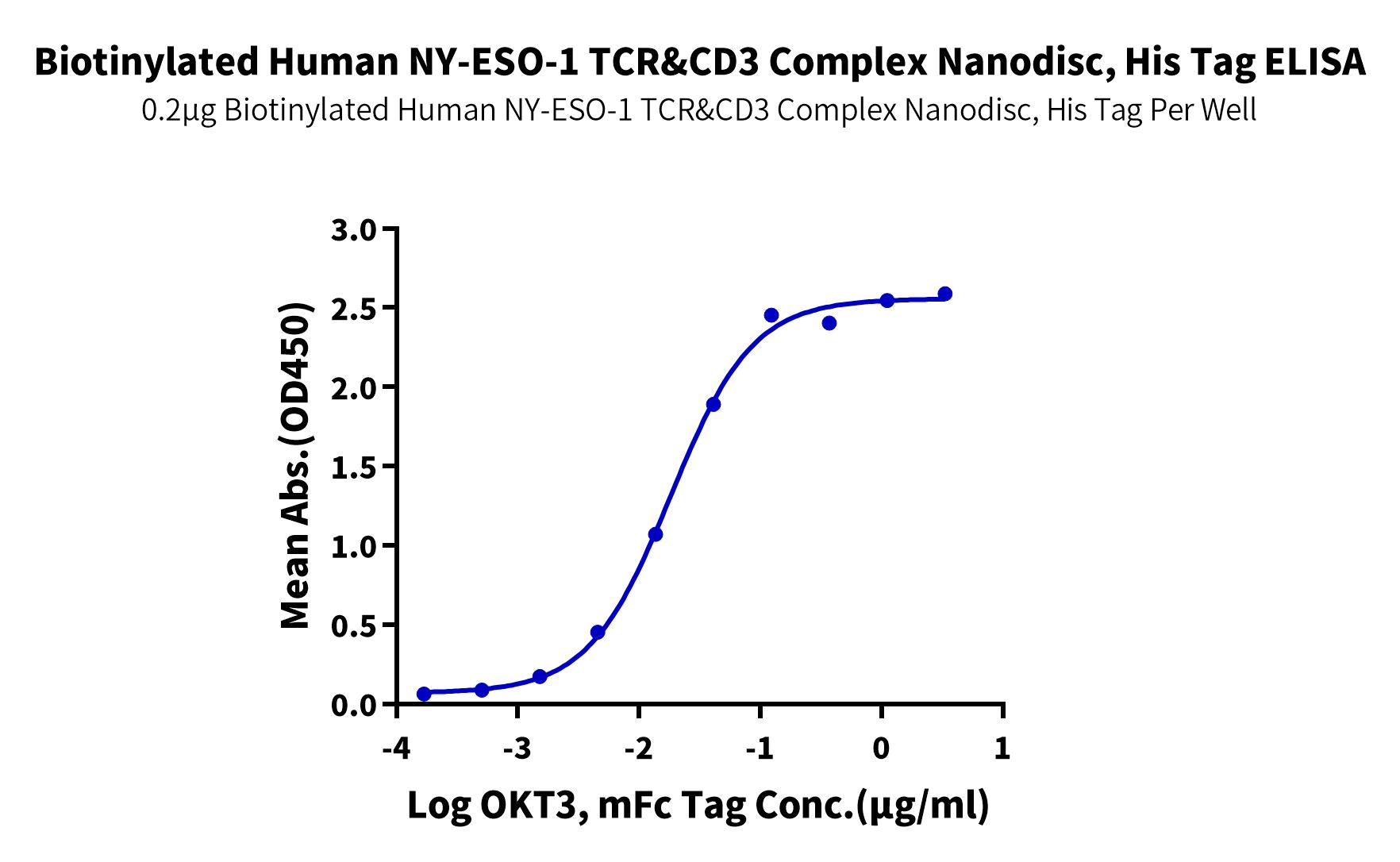

Immobilized Biotinylated Human NY-ESO-1 TCR&CD3 Complex Nanodisc, His Tag at 2ug/ml (100ul/well) on the streptavidin precoated plate (5ug/ml). Dose response curve for OKT3, mFc Tag with the EC50 of 18.3ng/ml determined by ELISA. |
|
|

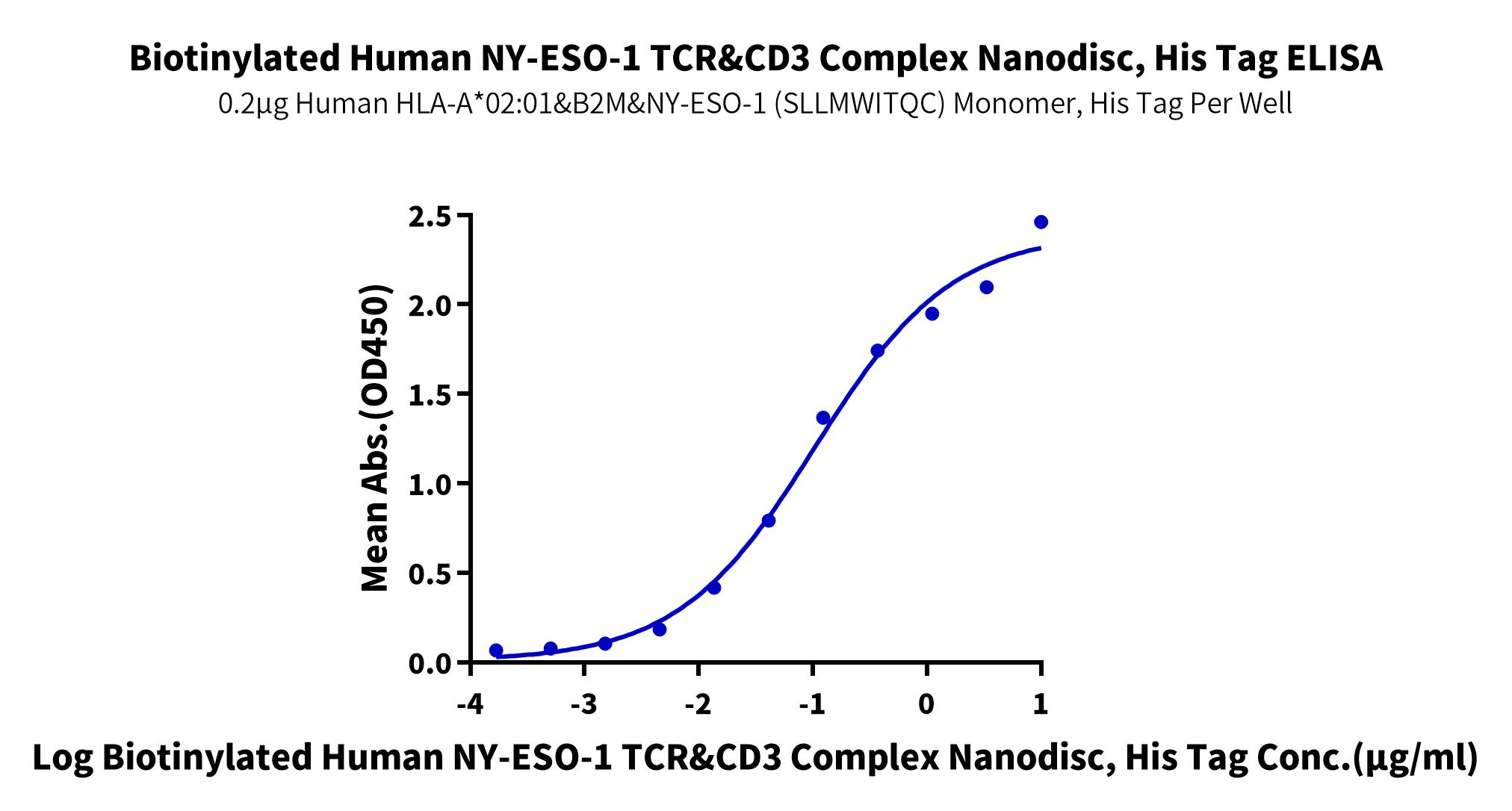

Immobilized Human HLA-A*02:01&B2M&NY-ESO-1 (SLLMWITQC) Monomer, His Tag at 2ug/ml (100ul/well) on the plate. Dose response curve for Biotinylated Human NY-ESO-1 TCR&CD3 Complex Nanodisc, His Tag with the EC50 of 0.1ug/ml determined by ELISA. |
|
|

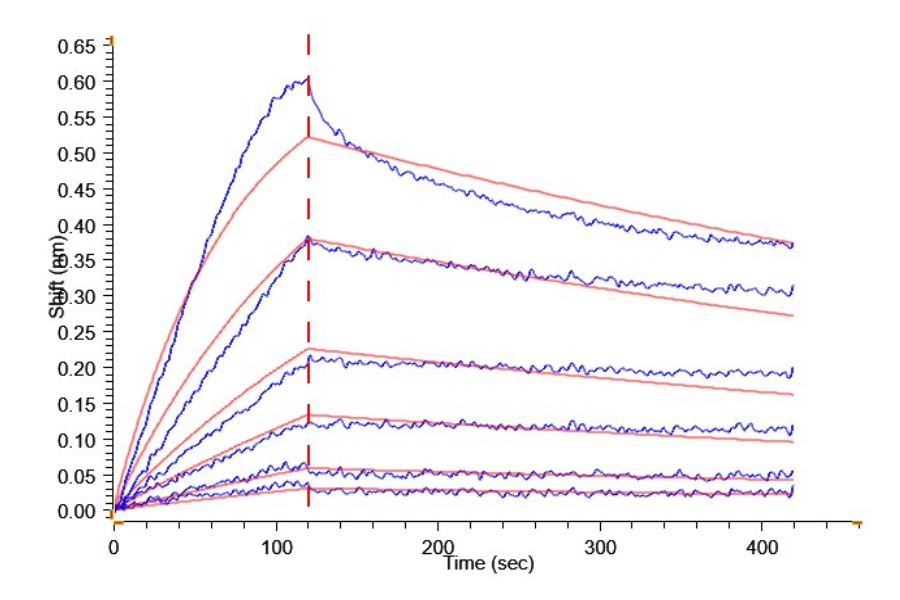

Biotinylated Human NY-ESO-1 TCR&CD3 Complex Nanodisc, His Tag on Streptavidin-Biosensor can bind OKT3, mFc Tag with an affinity constant of 0.89 nM as determined in BLI assay (Gator® Prime). |
|
|

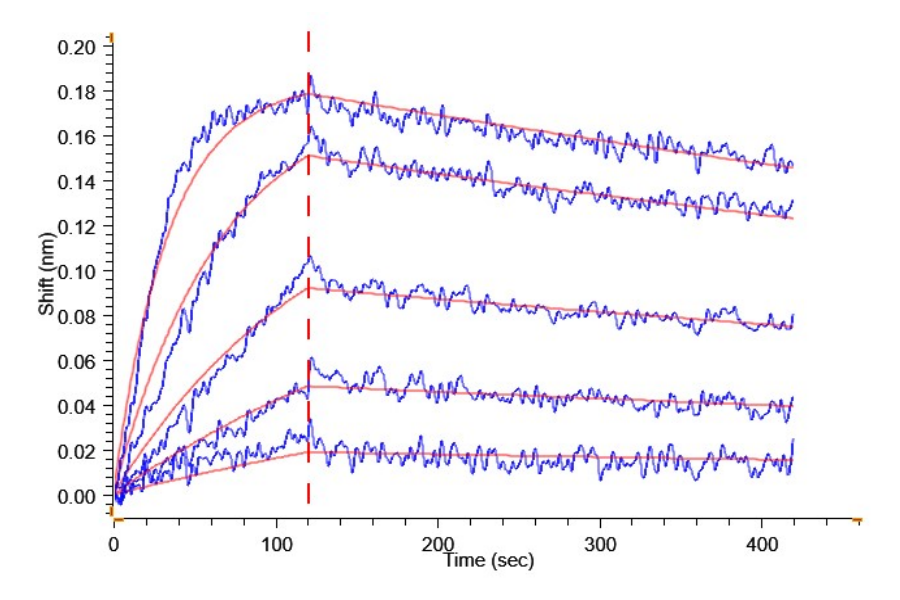

Loaded Biotinylated Human NY-ESO-1 TCR&CD3 Complex Nanodisc, His Tag on Streptavidin-Biosensor can bind Human HLA-A*02:01&B2M&NY-ESO-1 (SLLMWITQC) Monomer, His Tag with an affinity constant of 2.37 nM as determined in BLI assay (Gator® Prime). |
