Cynomolgus DNAM-1/CD226 Protein, Ultra Low Endotoxin (DAM-CM101-UL) Summary
Product Description |
Recombinant Cynomolgus DNAM-1/CD226 Protein is expressed from HEK293 with His tag at the C-Terminus.It contains Glu19-Phe252. |
Product Background |
DNAX accessory molecule-1 (DNAM-1), also known as CD226, is a 65 kDa type I transmembrane glycoprotein in the immunoglobulin superfamily.DNAM-1 mediates cellular adhesion to other cells bearing its ligands, CD112 and CD155, and cross-linking DNAM-1 with antibodies causes cellular activation. Furthermore, DNAM-1 can interact with PVR and PVRL2. |
Product Category |
Recombinant Protein / Antibody discovery / Immune checkpoint proteins |
Cynomolgus DNAM-1/CD226 Protein, Ultra Low Endotoxin (DAM-CM101-UL) Specifications/Details
Protein |
DNAM-1/CD226 |
Synonyms |
CD226 molecule; CD226; DNAM1; PTA1; TLiSA1 |
Accession |
|
Species |
Cynomolgus |
Biotinylated |
no |
Amino Acid Range |
Glu19-Phe252 |
Molecular Weight |
The protein has a predicted MW of 27.7 kDa. Due to glycosylation, the protein migrates to 48-68 kDa based on Bis-Tris PAGE result. |
Activity |
Immobilized Cynomolgus DNAM-1, His Tag at 5ug/ml (100ul/well) on the plate. Dose response curve for Human CD155, mFc Tag with the EC50 of 1.63ug/ml determined by ELISA (QC Test). The affinity constant of 0.82 uM as determined in SPR assay (Biacore T200). |
Product Tag |
C-His |
Fluorophore |
Unconjugated |
Expression System |
HEK293 |
Purity |
> 95% as determined by Bis-Tris PAGE;> 95% as determined by HPLC |
Endotoxin |
Less than 0.01 EU per ug by the LAL method. |
Shipping, Reconstitution, & Storage
Form |
Lyophilized |
Shipping |
Shipped at ambient temperature. |
Formulation |
Lyophilized from 0.22um filtered solution in PBS (pH 7.4). Normally 8% trehalose is added as protectant before lyophilization. |
Reconstitution |
Dissolve the lyophilized protein in distilled water. It is recommended to resuspend at 0.5 mg/mL if the lyophilized powder is 100 ug or less, at 1mg/ml for 500ug or 1mg lyophilized powder. Do not mix by vortex or vigorous shaking. |
Stability And Storage |
-20 to -80°C for 12 months as supplied from date of receipt.；-80°C for 3 months after reconstitution.；Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles. |
Validation Images
|
|

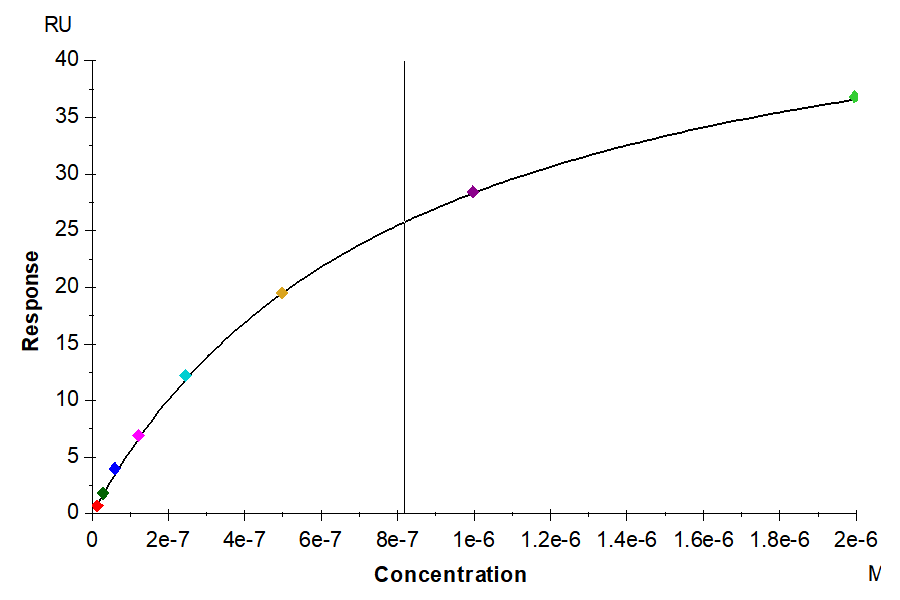

Human CD155, hFc Tag- captured on CM5 Chip via Protein A can bind Cynomolgus DNAM-1, His Tag with an affinity constant of 0.82 uM as determined in SPR assay (Biacore T200). |
|
|
Immobilized Cynomolgus DNAM-1, His Tag at 5ug/ml (100ul/well) on the plate. Dose response curve for Human CD155, mFc Tag with the EC50 of 1.63ug/ml determined by ELISA (QC Test). |
|
|
Cynomolgus DNAM-1 on Bis-Tris PAGE under reduced condition. The purity is greater than 95%. |
|
|
The purity of Cynomolgus DNAM-1 is greater than 95% as determined by SEC-HPLC. |
