Human ICOS/CD278 (C136S, C137S) Protein (ICO-HM102) Summary
Product Description |
Recombinant Human ICOS/CD278(C136S, C137S) Protein is expressed from HEK293 with His tag at the C-Terminus.It contains Glu21-Phe141(C136S,C137S). |
Product Background |
Inducible co-stimulator (ICOS), also called AILIM (activiation-inducible lymphocyte immunomediatory molecule) and CRP-1 (CD28-related protein-1), is a member of the growing CD28 family of immune costimulatory receptors. Other family members are CD28, CTLA-4 and PD-1. Human ICOS is a homodimeric type I transmembrane protein consisting of 199 amino acids (aa) with a putative 20 aa signal sequence, a 121 aa extracellular domain, a 23 aa transmembrane region, and a 35 aa cytoplasmic domain. |
Product Category |
Recombinant Protein / Antibody discovery / Antibody discovery/Others |
Human ICOS/CD278 (C136S, C137S) Protein (ICO-HM102) Specifications/Details
Protein |
ICOS/CD278 |
Synonyms |
AILIM; CD278; CRP-1; CVID1; ICOS; MGC39850 |
Accession |
|
Species |
Human |
Biotinylated |
no |
Amino Acid Range |
Glu21-Phe141(C136S,C137S) |
Molecular Weight |
The protein has a predicted MW of 14.8 kDa. Due to glycosylation, the protein migrates to 35-40 kDa based on Bis-Tris PAGE result. |
Activity |
Immobilized Human ICOS (C136S, C137S), His Tag at 5ug/ml (100ul/Well) on the plate. Dose response curve for Human B7-H2, hFc Tag with the EC50 of 5.0ng/ml determined by ELISA (QC Test). The affinity constant of 40.2nM as determined in SPR assay (Biacore T200). |
Product Tag |
C-His |
Fluorophore |
Unconjugated |
Expression System |
HEK293 |
Purity |
> 95% as determined by Bis-Tris PAGE |
Endotoxin |
Less than 1 EU per ug by the LAL method. |
Shipping, Reconstitution, & Storage
Form |
Lyophilized |
Shipping |
Shipped at ambient temperature. |
Formulation |
Lyophilized from 0.22um filtered solution in PBS (pH 7.4). Normally 8% trehalose is added as protectant before lyophilization. |
Reconstitution |
Dissolve the lyophilized protein in distilled water. It is recommended to resuspend at 0.5 mg/mL if the lyophilized powder is 100 ug or less, at 1mg/ml for 500ug or 1mg lyophilized powder. Do not mix by vortex or vigorous shaking. |
Stability And Storage |
-20 to -80°C for 12 months as supplied from date of receipt.；-80°C for 3 months after reconstitution.；Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles. |
Validation Images
|
|
Human B7-H2, hFc Tag captured on Protein A chip, can bind Human ICOS (C136S,C137S) , His Tag with an affinity constant of 40.2nM as determined in a SPR assay (Biacore T200). |
|
|

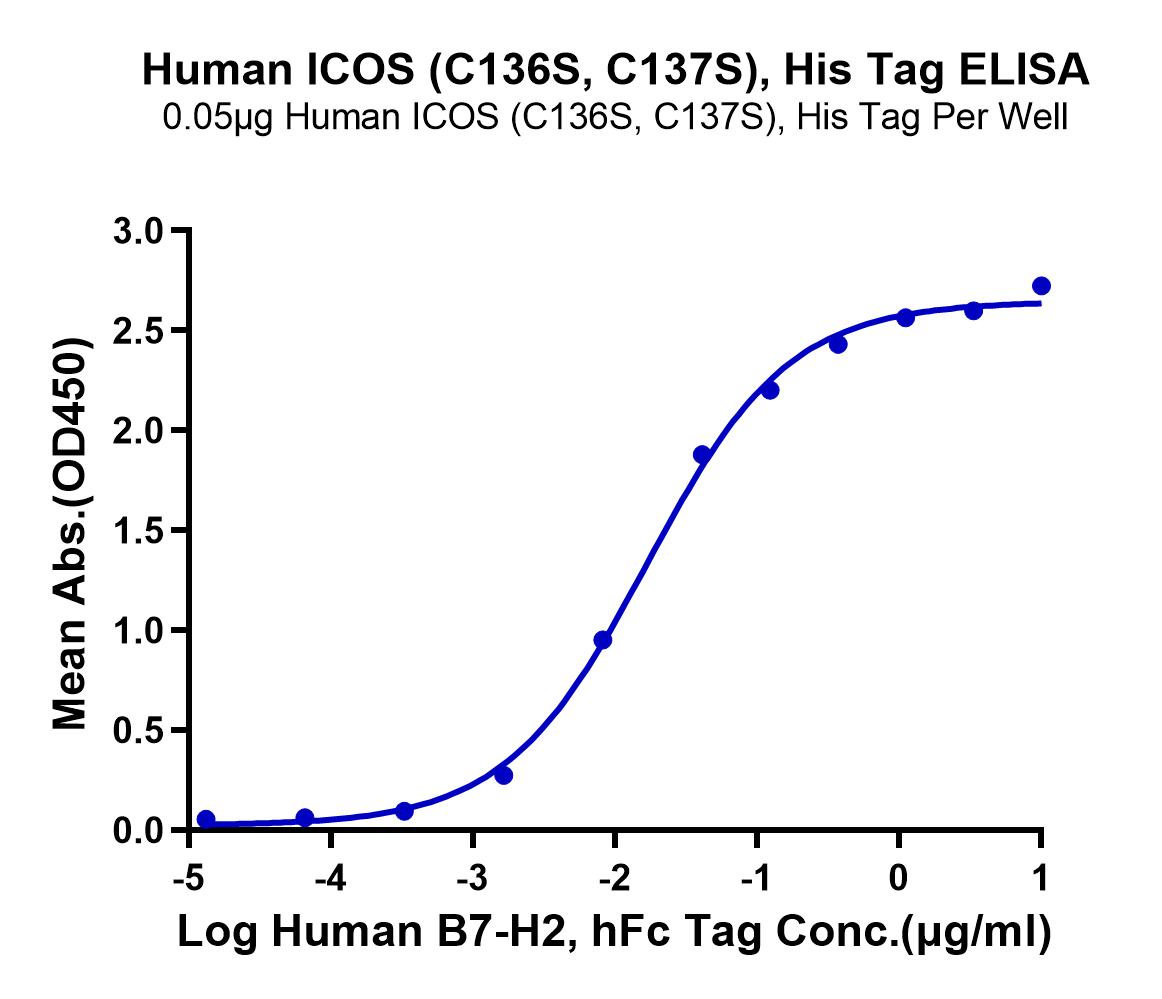

Immobilized Human ICOS (C136S, C137S), His Tag at 5ug/ml (100ul/Well) on the plate. Dose response curve for Human B7-H2, hFc Tag with the EC50 of 5.0ng/ml determined by ELISA (QC Test). |
|
|

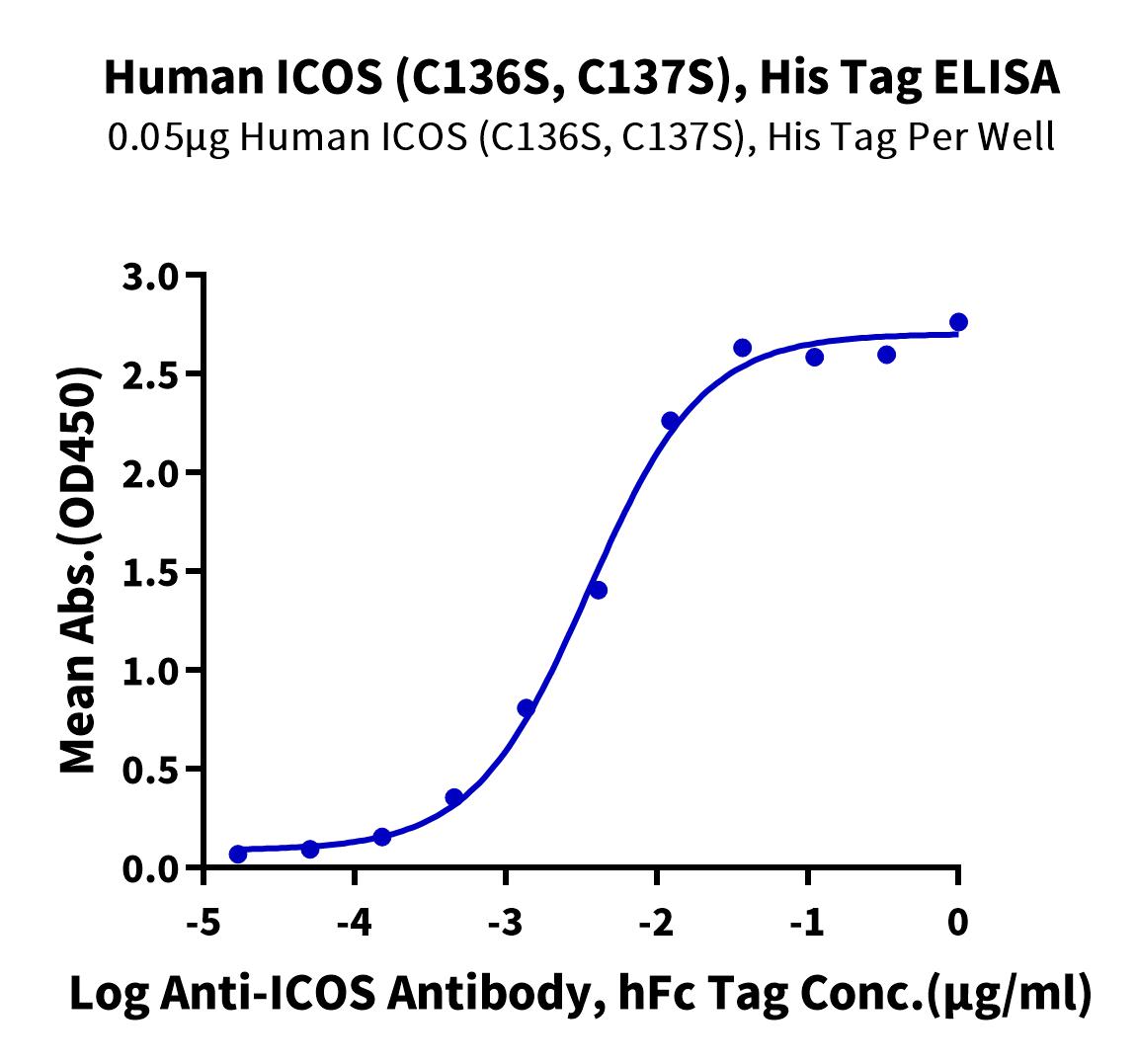

Immobilized Human ICOS (C136S, C137S), His Tag at 0.5ug/ml (100ul/well) on the plate. Dose response curve for Anti-ICOS Antibody, hFc Tag with the EC50 of 3.5ng/ml determined by ELISA. |
|
|
Human ICOS (C136S,C137S) on Bis-Tris PAGE under reduced condition. The purity is greater than 95%. |
|
|

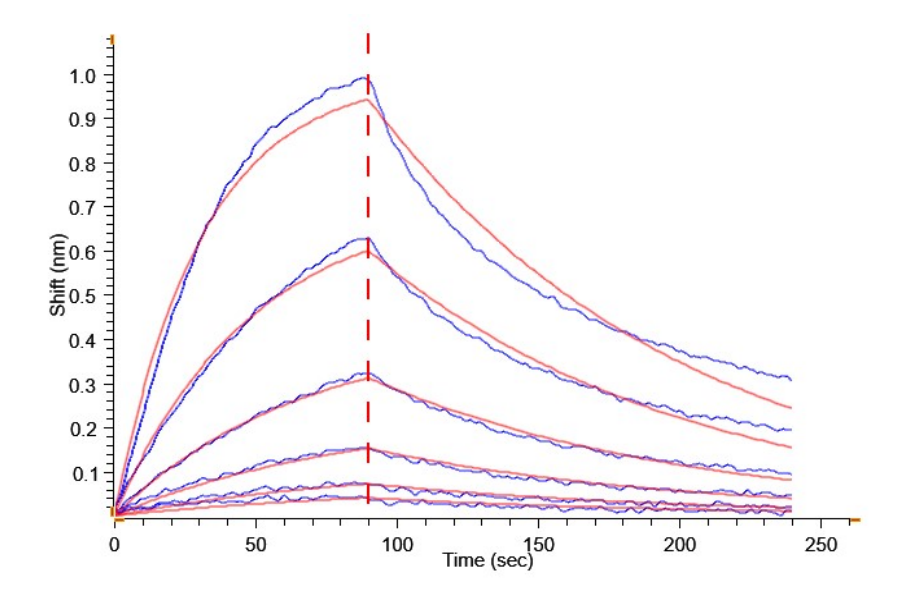

Loaded Biotinylated Human B7-H2, His-Avi Tag on Streptavidin-Biosensor can bind Human ICOS (C136S, C137S), His Tag with an affinity constant of 77.40 nM as determined in BLI assay . |
